Introduction:
Airbags originated in China and have been spread all over the world and accepted by enterprises all over the world. Airbag also known as marine airbag, ship launching airbag, ship salvage airbag, inflatable airbag, ship lifting bag, air balloon, made by outer rubber & multi layer of cord layers. Airbags are widely used in ship launching and landing, ship salvage , floating caisson,lifting heavy objects and so on.
Main Applications of Ship Launching Airbags:

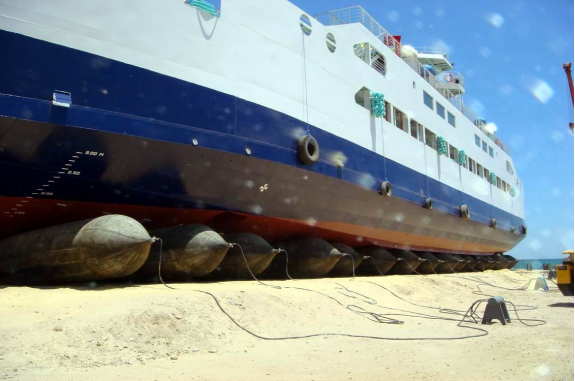

1. For ship launching and docking.
2. On Land Construction
3. Ship Salvage
4. Heavy Objects Lifting
5. Caisson Floating
6. Marine Engineering
Structure
The airbags are composed by airbag body and many accessories at both ends, which are inflatable end and sealed end.The airbag body is composed by natural rubber and strength fiber material through vulcanization processing; The terminal iron part is made of cast iron, it is combined closed with the bag body; One end is for pulling when move the airbag, and the other end is for charging and discharging the air.
Specification
Model | Specification(D×L) | Application |
4 layer | Diameter(D):
0.6m 0.8m, 1.0m, 1.2m, 1.5m, 1.8m,2.0m etc.
Length(L):
ranging from 5m to 28m
(Diameter and length can customize by the requirements of customers） | For Small and medium-sized ship up to or down to launching way and moving objects |
6 layer | For the larger ship up to or down to launching way and moving objects |
6-8 layer | For large and medium-sized ship up to or down to launching way and moving objects |
8 layer or more | For large ship up to or down to launching way and supporting the key parts during operation |
Ship launching airbags advantages:
1.Different size airbag stock available,quick delivery
2.Provide repair kit and on site instruction
3.Long time service life can be reused many times
4.Wear resistance and anti aging
5.Good raw material and cord fabric
6.Harmless to the environment.Time&money saving
7.Need no more than air compressors,winches and ropes
8.Using marine airbags are much cheaper and portable than other methods
