Tugboat Fender
Tugboat Fenders are mainly used at all kinds of harbor tugboats, installed at bow, board and aft. Rubber Fenders adopts integral molding vulcanization workmanship to obtain good performance, long service life and easy installation.

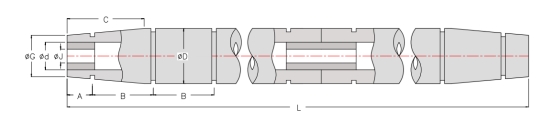

Specification
φD | φd | Amax | Bmax | φC | φG | φJ |
250 | 125 | 200 | 570 | 500 | 190 | 75 |
300 | 150 | 225 | 600 | 700 | 225 | 75 |
350 | 175 | 250 | 650 | 800 | 250 | 85 |
400 | 200 | 300 | 670 | 800 | 300 | 100 |
450 | 225 | 300 | 700 | 850 | 350 | 100 |
500 | 250 | 300 | 730 | 900 | 375 | 100 |
600 | 300 | 350 | 800 | 900 | 450 | 125 |
800 | 400 | 350 | 930 | 1000 | 600 | 125 |
900 | 450 | 350 | 1000 | 1100 | 675 | 150 |
1000 | 500 | 350 | 1060 | 1200 | 750 | 150 |
