Cylindrical Rubber Fender
Low reaction force, moderate surface pressure, and reasonable energy absorption.
Stronger adaptability for longitudinal and crosswise motion of ships during berthing.
Applicable for ships with different sizes and all sorts of docks.
Various installation way and easy for installation and maintenance.
Specification and performance
Specification

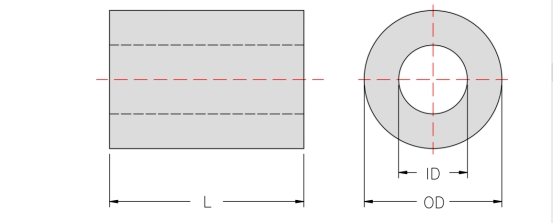

ODxID
(mm) | Standard Reaction Force | High Reaction Force | Weight (kg) |
R(kN) | E(Nm) | R(kN) | E(kNm) |
150×75 | 44 | 1.5 | 73 | 2.3 | 17 |
200×100 | 60 | 2.6 | 95 | 4.2 | 31 |
250×125 | 75 | 4 | 120 | 6.5 | 48 |
300×150 | 89 | 6 | 143 | 9 | 69 |
350×175 | 104 | 8 | 167 | 13 | 94 |
400×200 | 119 | 10 | 191 | 17 | 123 |
500×250 | 148 | 16 | 239 | 26 | 191 |
600×300 | 179 | 24 | 286 | 37 | 275 |
700×350 | 208 | 31 | 334 | 50 | 376 |
800×400 | 237 | 41 | 383 | 66 | 490 |
900×450 | 268 | 52 | 430 | 84 | 620 |
1000×500 | 297 | 64 | 479 | 103 | 766 |
1100×550 | 331 | 77 | 528 | 129 | 926 |
1200x600 | 363 | 95 | 574 | 152 | 1102 |
1300×650 | 392 | 108 | 623 | 179 | 1294 |
1400×700 | 422 | 128 | 670 | 208 | 1501 |
1500×750 | 451 | 147 | 718 | 238 | 1723 |
1600×800 | 481 | 176 | 776 | 282 | 1960 |
1700×850 | 511 | 206 | 824 | 338 | 2213 |
1800×900 | 541 | 247 | 872 | 406 | 2481 |
1900×950 | 570 | 288 | 920 | 487 | 2765 |
2000×1000 | 653 | 321 | 1054 | 584 | 3063 |
